65mm Tube Aerator Nano Bubble Air Diffuser For Mixing Air And Water
Product Parameter
| Item | φ65*500mm | φ65*750mm | φ65*1000mm |
| Spec. φ*L mm | 65*500mm | 65*750mm | 65*1000mm |
| Oxygen transfer efficiency | Water Depth 5m | 23-32% |
| Water Depth 6m | 34-39.5% |
| Water Depth 7m | 31-45% |
| Ventilatory volume (m3/h) | 1.7-6.8 | 3.4-13.6 | 3.4-17 |
| Service area | 0.82-1.26m2 | 0.98-2.11m2 | 0.98-2.35m2 |
| Number of holes | 8080 | 10300 | 13880 |
| Bubble diameter | 0.8-2.0mm |
| Pressure loss | 25-42cm | 25-41.5cm | 25-40cm |
| Oxygenation capacity | Micropore: 7.5kgO2/kw.h(under 5m of water); Pore:3.5-4.8kgO2/kw.h(under 5m of water) |
| Extension ability | >600% |
| Tension strength | >13.8*103kpa |
Product Description

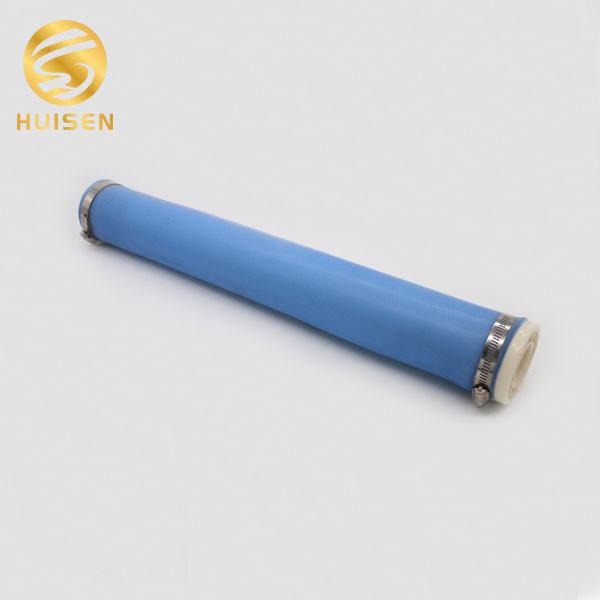

Huisen 65mm fine bubble tube diffuser is made by three parts, ABS support part, which sometimes can be PVC, EPDM membrane and SS304 clamp.
There are tiny self closing holes on the membrane. During operation, the micropores of the aeration pipe will open automatically under the air pressure, and the air will enter the tank for oxygen charging; if the pressure disappears, the micropores of the aeration pipe will close automatically to prevent water from flowing back into the micropores.
Product Advantage
1. Strictly select high-quality materials, improving its service life;
2. It is favorable for water flow to impact the activated sludge attached to the surface of the aeration pipe;
3. It has reasonable design, which is more durable and not easy to store sludge, it is also easy to install;
4. Support customization, can customize specifications and sizes according to customer requirements, to meet the needs of different fields;
Product Application
It is applied to domestic sewage and industrial treatment. It is used in different stages of aerobic tank, anoxic tank, sedimentation tank and other sewage treatment processes. It is not limited by the shape of the tank, and can be used in various types of tanks.

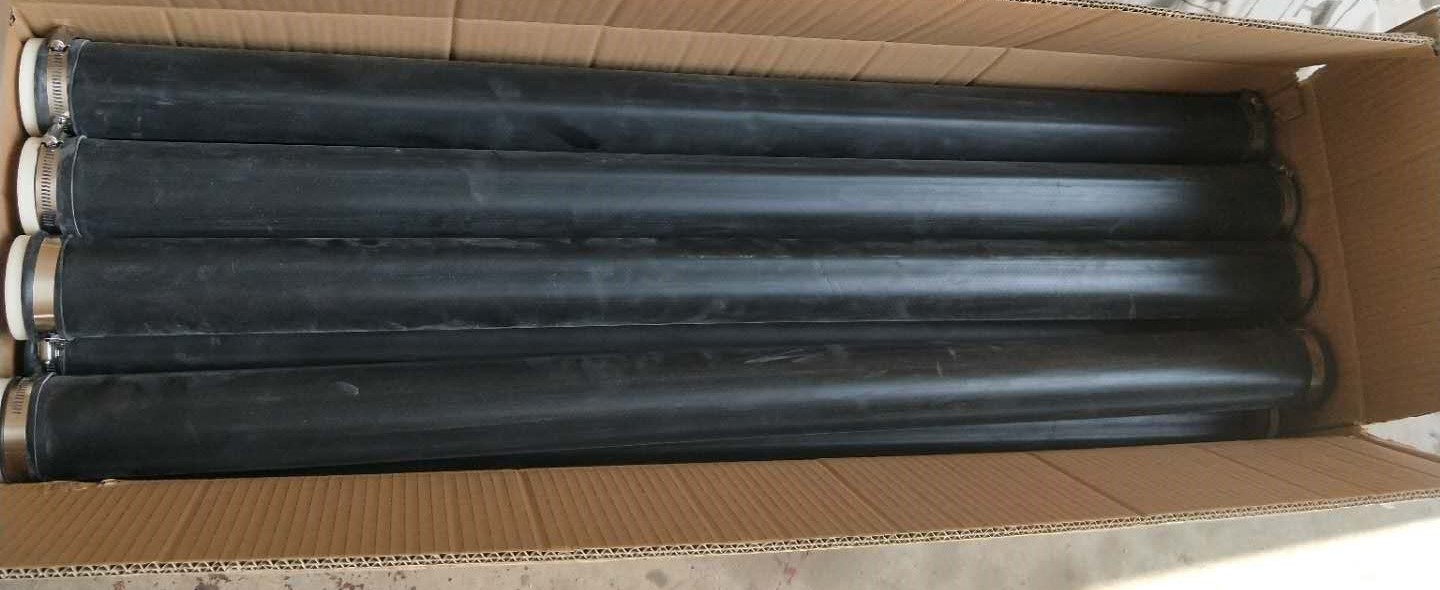

Product Package
Using 102x38x31cm master carton to pack.
If the size is 65*1000mm, 20pcs per carton;
If the size is 65*500mm, 40pcs per carton.
